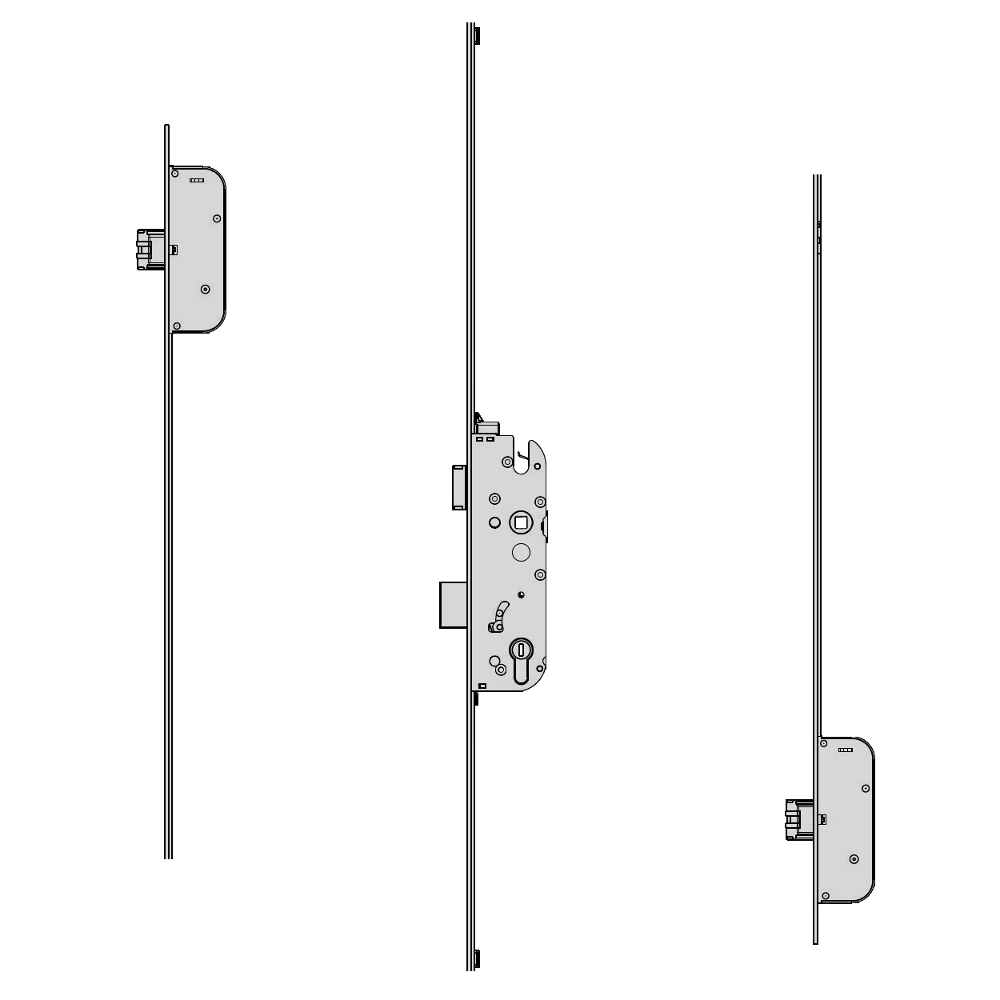

The GU Secury LogIQ A2 is a multipoint locking system built around an automatic locking 20mm latchbolt mechanism that operates as soon as the door is closed, without requiring a manual throw of the bolts. The single spindle latch and deadbolt centre case has 92mm centres, accepts a euro profile cylinder and there are two other locking point deadlocks. In addition, the latch is reversible providing suitability for both left and right‑hand doors.
In normal operation: as the door closes, triggers in the frame actuate the automatic latchbolts, which extend and prevent reversal, thereby drawing the door securely into the frame; a subsequent turn of the key (from the outside) or use of the lever (from the inside) deadlocks the central bolt as required.
This version has a 16mm square faceplate, is 2200mm long and is prepped ready for the addition of a separately available Secury A-Opener motor, which would allow automated latchbolt retraction via an access control system.
In normal operation: as the door closes, triggers in the frame actuate the automatic latchbolts, which extend and prevent reversal, thereby drawing the door securely into the frame; a subsequent turn of the key (from the outside) or use of the lever (from the inside) deadlocks the central bolt as required.
This version has a 16mm square faceplate, is 2200mm long and is prepped ready for the addition of a separately available Secury A-Opener motor, which would allow automated latchbolt retraction via an access control system.
